Change the way you work

No matter your organizational sector, GTX helps you work smarter - not harder.

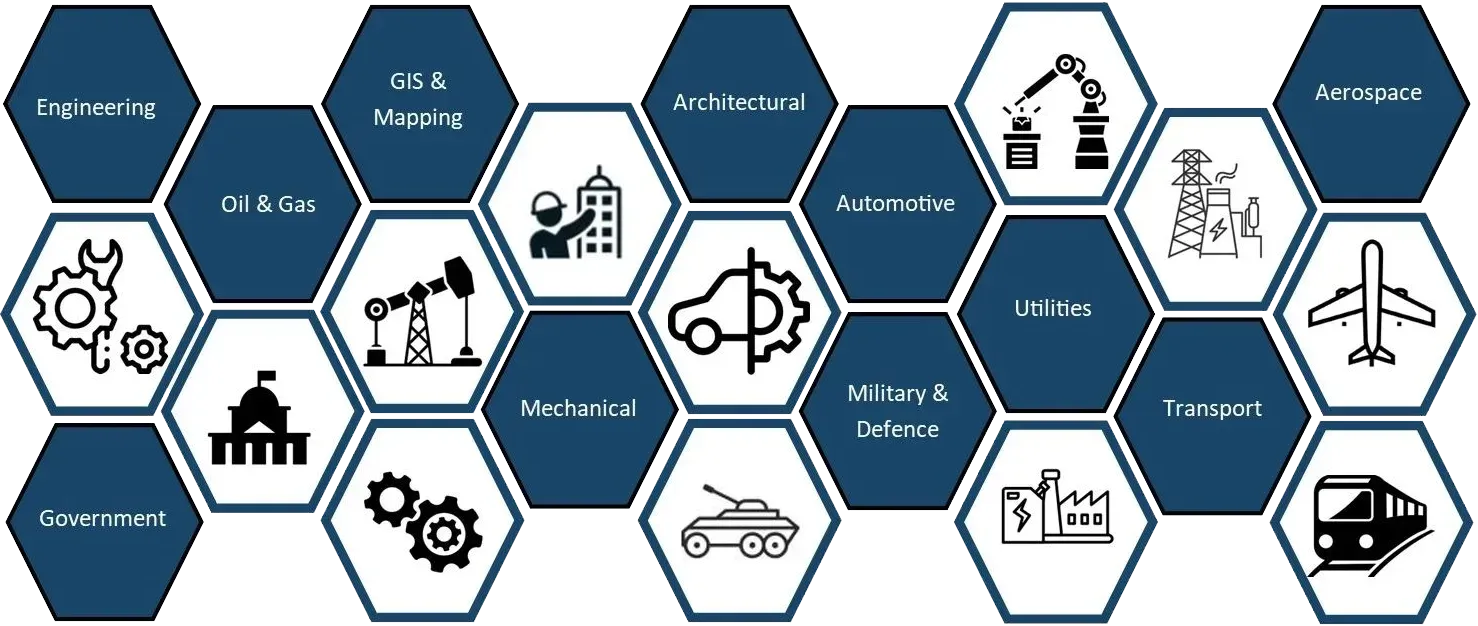

Improve efficiency and reduce costs - whatever your industry

GTXRaster CAD for industries

GTXRaster CAD is a powerful tool for industries that rely on engineering documentation or technical schematics. It helps companies vectorize, edit, and optimize their legacy drawings, improving efficiency and reducing costs.

Read some customer stories:

GTX helps you futureproof your engineering documentation and use legacy assets efficiently.

GTXRaster CAD for the public sector

GTXRaster CAD can be highly beneficial in the public sector when managing large-scale infrastructure projects, historical archives, urban planning records, and technical documentation. Use it to improve your workflow in infrastructure projects, re-use and edit essential emergency response plans, ensure compliance with new regulations and much more.

GTXRaster CAD is highly useful for organizations that need to maintain and use archival drawings and plans.

GTX software – the way you want it

Use GTX as a stand-alone product or as a plugin in your favorite CAD software for a seamless workflow.

Better together

We're proud to collaborate with ambitious industries around the world. Together, we're revolutionizing the way raster drawings are used and transformed.
GTX products are the single most requested products when it comes to raster editing and conversion software. …We depend on GTX for advanced technology that surpasses other available products on the market. And, if you know AutoCAD, then you already know GTX products because all menus, commands, and toolbars are consistent with AutoCAD. GTX products are a ‘win-win’ solution for any engineering environment that requires legacy data to be updated into electronic format.

— Autodesk Resource Guide
Thank you for the quick response to my problem. I have never received such a quick response and solution to a problem experienced with any other software package that I have used. Being the Supervisor and support manager for an engineering group, I am required to provide quick solutions in a production work environment. Being a long-time user of GTXRaster CAD, I was duly impressed this time. Thanks, once again.

— PACIFICORP
I am very pleased with your software for Vector/Raster images into AutoCAD 2002. The possibilities and time savings by scanning and using GTX to raster-to-vector is awesome. Your company rates a "10" in customer response and support based on our experience with you and GTX. Keep up the great job you're doing.

— Hershey's Chocolate of California, Inc Paul Galas, Senior Design Specialist
The GTXRaster CAD software is a very useful software for our drafting needs since about 50% of our CAD files are scanned drawings. The speed with which I can revise these drawings using GTX is one of the things that make drafting here in Arab efficient and timely. Assembly drawings especially can take four to five days to redraw because of the complexity of the switch assemblies... the GTX software speeds up my work, it allowed me to completely revamp two raster assemblies in about six hours!

— Tyco Electronics - Arab
GTX raster conversion and enhancement products are consistently among the most powerful and easiest to use hybrid and raster to vector programs. GTXRaster R2V is…aimed squarely at users of Autodesk CAD Overlay. Indeed R2V and CAD Overlay complement each other very well. The GTX program adds automatic and selective raster to vector conversion to CAD Overlay’s raster tools.

— CADALYST Magazine
The GTXRaster CAD Series is for you... If you need to use raster images or include manual drawings inside AutoCAD with minimum effort and maximum accuracy... The GTXRaster CAD Series added intelligence to the [conversion] process, recognizing lines, arcs, circles, text and arrows as what they are and translating them properly. Its highly automated and intelligent features help the program pay for itself within weeks." "CAD Overlay and GTXRaster R2V are a particularly good combination... The GTXRaster R2V module picks up where CAD Overlay leaves off by providing fully automatic, unattended raster-to-vector conversion.

— CADENCE Magazine

Transform your paper-based drawings into digital assets

Use GTX Raster to maximize the value of your legacy drawings!
